Universal 3 Link Kit (OPTION 2)

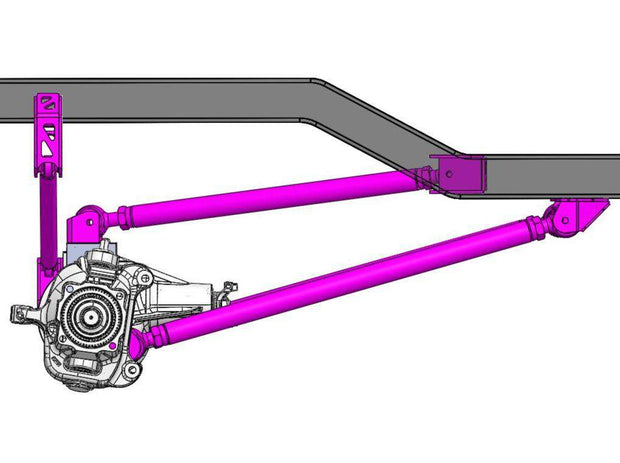

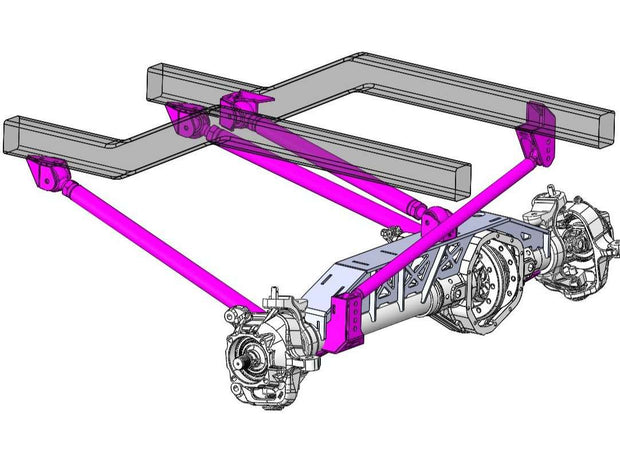

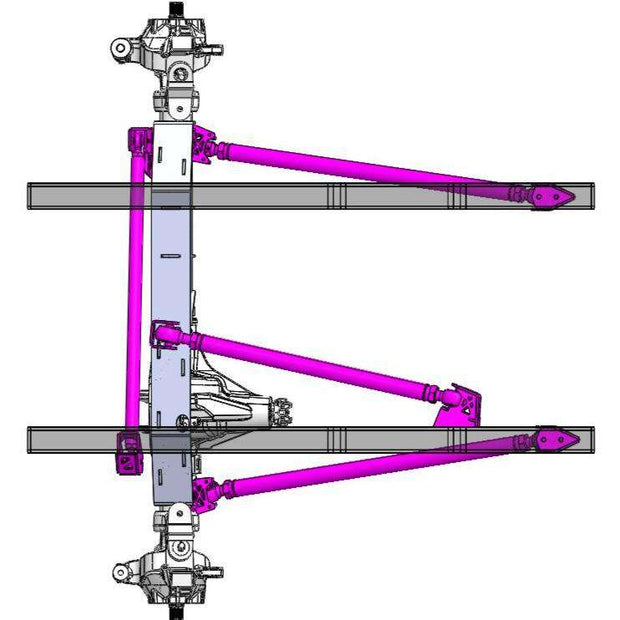

OPTION 2 - SAME LINK DESIGN AS OPTION 1, WITH SEPARATE UPPER AND LOWER LINK BRACKETS - THIS ALLOWS YOU TO HAVE MORE FREEDOM OF BRACKET PLACEMENT!

TMR Customs universal link kits have been designed with the latest CAD Software, and all the components are manufactured from the highest grade materials.

This kit is ideal for swapping aftermarket axles or upgrading from your current suspension system. We've built our kit with adjustability in mind, allowing you to dial in your suspension for the ultimate in off-road performance.

Designed to be paired with coil over shocks, ORI Struts, air shocks, or standard coil springs.

The base kit includes frame side and axle side 3 link brackets. You have the choice of adding 1-1/4" Forged Johnny Joints (Control Arms), and 7/8" Chromoly Rod Ends (Track Bar) which include jam nuts and threaded weld in tube adapters.

Our frame side 3 link brackets are modular - you can place the upper link on either the driver or passenger side - whatever best suits your build!

• KIT DOES NOT INCLUDE TUBING OR BOLTS! After tacking all the brackets in place measure for approx lengths and purchase DOM Tubing locally! 2" x 1/4" Wall for Control Arms and 1-1/2" x 1/4" Wall for the Track/Panhard Bar.
